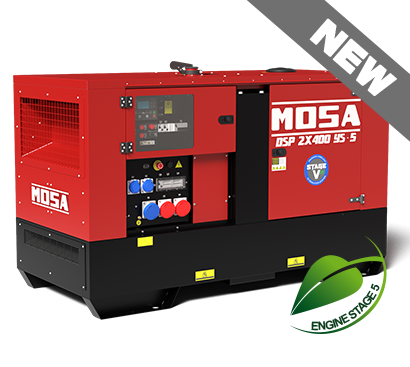

DSP 2x400 YS5-CC/CV Diesel Welder Gen, 1500 rpm

Diesel Engine driven welder - YANMAR 4TNV98T Engine -  Three-phase asyncronous alternator

WELDING

• Welding current: 2x400A / 36V (STICK) /  2x400A / 26V (TIG)
• Welding current electronic regulation: continues on 2 scales 2x20A/20,8V - 200A/28V   |  2x20A/20,8V - 400A/36V (STICK) / 2x20A/10,8V - 200A/18V  |  2x20A/10,8V - 400A/26V (TIG)
• Service: 2x400A/36V @ 35%  |  2x360A/34.5V @ 60%  |  2x330A/33.2V @ 100% (STICK)
                 2x400A/26V @ 35%  |  2x360A/24.5V @ 60%  |  2x330A/23.2V @ 100% (TIG)
• Open circuit voltage (no-load voltage): 68 Vcc / Vdc

POWER RATINGS

• Three-phase power: 40 kVA (30kW) / 400 V / 57.8 A
• Single-phase power: 20 kVA/kW / 230 V / 87 A
• Single-phase power: 10 kVA (8kW) / 110 V / 90.9 A
• Single-phase power: 5 kVA/kW / 48V / 104 A

GENERAL SPECIFICATION

• Tank capacity: 102 l
• Running time (welder 60%): 19.5 h
• Pressure acoustic: 64 dB(A) @ 7m
• Guaranteed acoustic power: 91 dB(A)
• Weight: 1245 Kg
• Dimensions max. on base Lxlxh:  2271x1038x1451 mm
