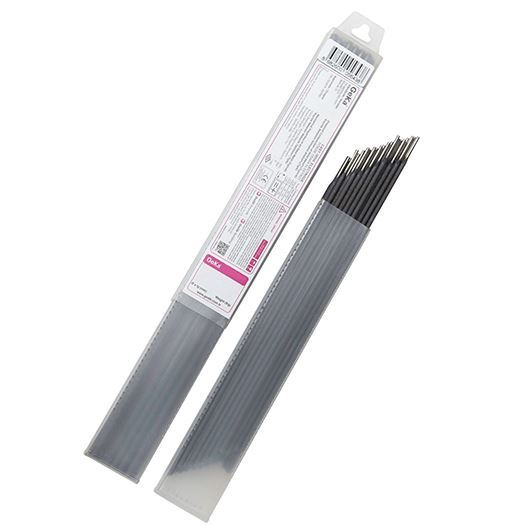

Ni cored stick electrode for welding grey cast iron, temper cast iron, nodular cast iron and cast iron to steel. Best for welding in short passes.
Features and Applications
Joint welding of grey cast iron, temper cast iron, nodular cast iron as well as joint welding of cast iron with steel, stainless steel and Monel metal
Ni cored stick electrode
Welding in short passes, and gently striking the bead of each pass with a hammer when the bead is hot is required
| Standards |
Current Type |
| TS 9463 / EN ISO 1071 E C Ni-CI 1 |
D.C.(-) / A.C. |
AWS A5.15 - E Ni-CI
|
|
| Chemical Composition of Weld Metal % (Typical) |
| C |
Ni |
|
|
|
|
| 0.5 |
Rest |
|
|
|
|
| Mechanical Properties |
Yield Strength
(N/mm2) |
Tensile Strength
(N/mm2) |
Elongation
(Lo=5do)(%) |
Hardness
(HB) |
200
|
250 |
3 |
170 |
Welding Positions
| Operating Data |
| Diameter x Length (mm) |
Welding Current (A) |
Package
Weight (Kg) |
|
|
2.50 x 300
3.20 x 300
4.00 x 400
|
60 - 90
90 - 110
110 - 130
|
1
1
1
|
|
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
