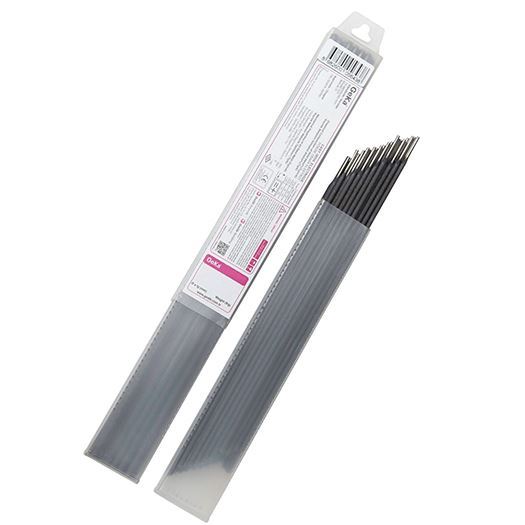

Ni-Fe cored stick electrode for welding grey cast iron, temper cast iron and joint welding of cast iron to hard to weld to steel or cast parts. Best for welding in short passes.
Features and Applications
Welding of grey cast iron, temper cast iron
Joint welding of cast iron with hard-to- weld steels or cast parts
Ni-Fe cored stick electrode
Welding in short passes, and hammering the bead of each pass through gentle strikes is required
| Standards |
Current Type |
| TS 9463 / EN ISO 1071 E C NiFe CI 1 |
D.C.(+) |
AWS A5.15 - E NiFe-CI
|
|
| Chemical Composition of Weld Metal % (Typical) |
| Fe |
Ni |
|
|
|
|
| >40.0 |
>45.0 |
|
|
|
|
| Mechanical Properties |
Yield Strength
(N/mm2) |
Tensile Strength
(N/mm2) |
Elongation
(Lo=5do)(%) |
Hardness
(HB) |
200
|
350 |
6 |
190 |
Welding Positions
| Operating Data |
| Diameter x Length (mm) |
Welding Current (A) |
Package
Weight (Kg) |
|
|
2.50 x 300
3.20 x 300
4.00 x 400
|
60 - 90
80 - 120
110 - 150
|
1
1
1
|
|
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
