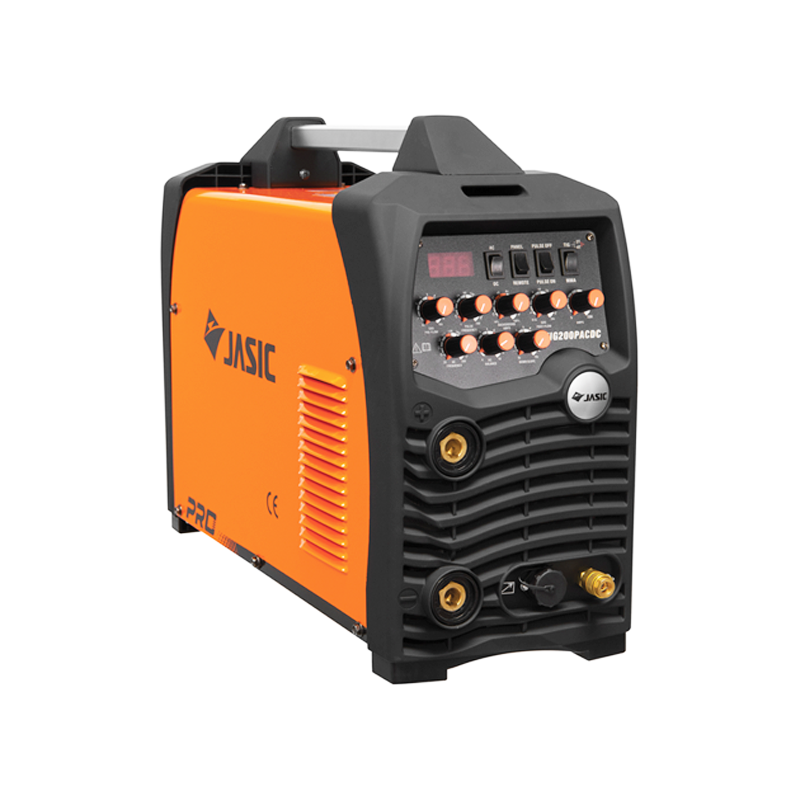

Jasic TIG 200A AC/DC Pulse Inverter Package

• TIG Pulse AC/DC with analog control
• Digital display
• Peak current control, 2T/4T
• Pre-post flow time, up/down slope
• Pulse adjustment
• Pulse frequency, pulse duty, arc force, cleaning width
• Remote control interface
• AC function for aluminium and aluminium alloys
• DC TIG function for carbon steel, copper and non-ferrous metals
• Smooth arc and stable welding performance
• Heavy duty 35/50 dinse sockets
• VRD Function
• AVR generator friendly

Input Voltage: AC 230V - 50/60 Hz

Ieff(A): 17

Input Power (kVA):7.1

Current Range (A): MMA 10 - 160 - TIG 5 - 200

Duty Cycle @ 40°C: MMA 160A @ 30% - TIG 200A @ 25%

No-Load Voltage (V): 65 (7V VRD)

Protection/Insulation Class: P21S/B

Dimensions (LxWxH mm): 566 x 224 x 405

Weight (Kg): 15

Download Sales Leaflet PDF
