Jasic TIG 200D AC/DC Pulse Water Cooled Package

Availability: In Stock
Order Code: ZXJT-202D-WC

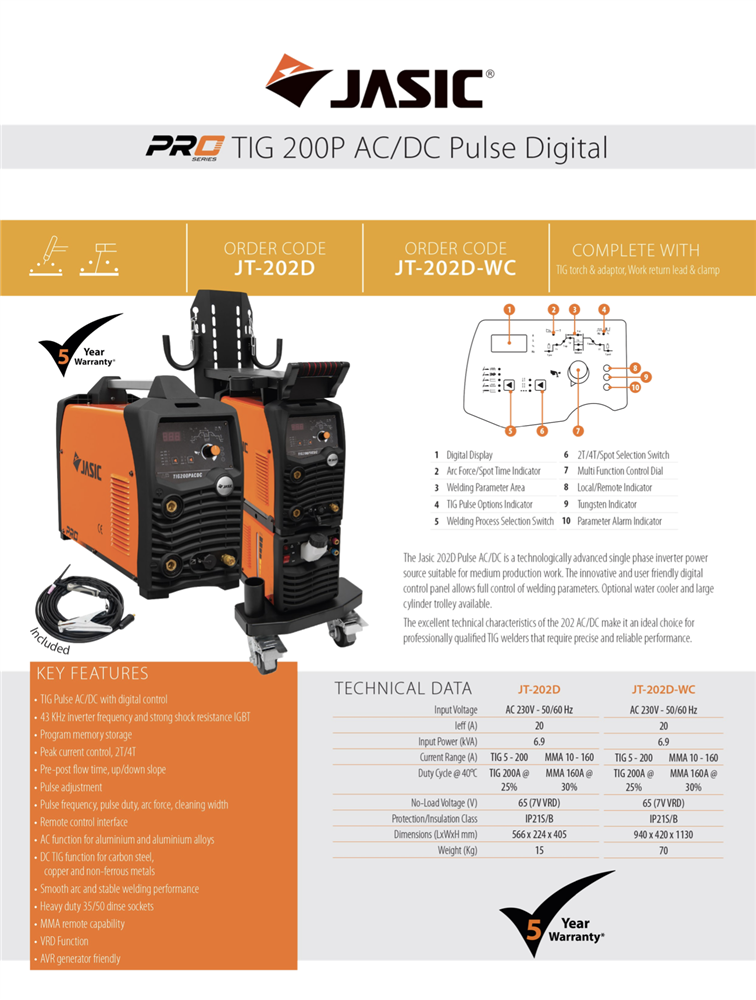

Jasic TIG 200P AC/DC Digital Inverter Water Cooled

Jasic Website Product Link

Jasic TIG 200P AC/DC Digital Inverter Water Cooled

Jasic Website Product Link

  • TIG Pulse AC/DC with digital control
  • 43 KHz inverter frequency and strong shock resistance IGBT
  • Program memory storage
  • Peak current control, 2T/4T
  • Pre-post flow time, up/down slope
  • Pulse adjustment
  • Pulse frequency, pulse duty, arc force, cleaning width
  • Remote control interface
  • AC function for aluminium and aluminium alloys
  • DC TIG function for carbon steel, copper and non-ferrous metals
  • Smooth arc and stable welding performance
  • Heavy duty 35/50 dinse sockets
  • MMA remote capability
  • VRD Function
  • AVR generator friendly

Input Voltage: AC 230V - 50/60 Hz

Ieff(A): 20

Input Power (kVA):6.9

Current Range (A): MMA 10 - 160 - TIG 5 - 200

Duty Cycle @ 40°C: MMA 160A @ 30% - TIG 200A @ 25%

No-Load Voltage (V): 65 (7V VRD)

Protection/Insulation Class: P21S/B

Dimensions (LxWxH mm): 566 x 224 x 405

Weight (Kg): 15
