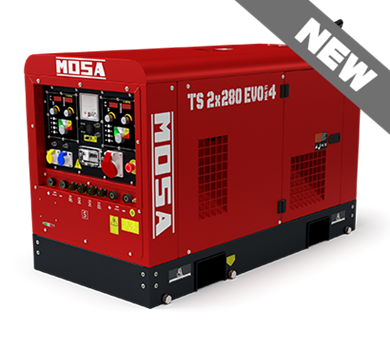

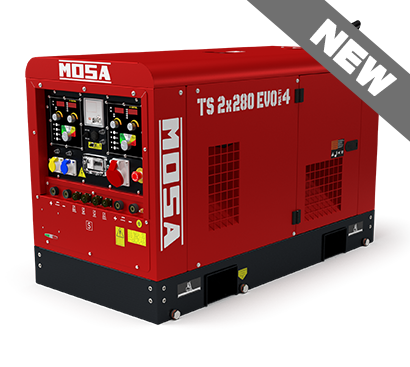

TS 2x280 EVO Multi4 CC/CV Diesel Welder Generator

TS 2 x 280 EVO Multi4 CC/CV Diesel Welder Generator

Engine Driven Welder Diesel KUBOTA V1505 - Three-phase asynchronous Alternator - Water cooling

WELDING SMAW

• Welding current: 20A ÷ 250A (DUAL)
• Welding current: 40A ÷ 500A (SINGLE)
• Service: 250A - 60% / 230A - 100% (DUAL)
• Service: 480A - 60% / 440A - 100% (SINGLE)
• Open circuit voltage (no-load voltage): 70 Vcc (75 Vcc dc peak)

WELDING GTAW

• Welding current: 20A ÷ 250A (DUAL)
• Welding current: 40A ÷ 500A (SINGLE)
• Service: 250A - 60% / 230A - 100% (DUAL)
• Service: 480A - 60% / 440A - 100% (SINGLE)
• Open circuit voltage (no-load voltage): 70 Vcc (75 Vcc dc peak)

POWER RATINGS

• Three-phase power: 15 kVA (15 kW) / 400 V / 21.6 A
• Single-phase power: 7 kVA (7 kW) / 230 V / 30.4 A
• Single-phase power: 5 kVA (5 kW) / 115 V / 43.5 A

GENERAL SPECIFICATION

• Tank capacity: 60 l
• Running time (welder 60%): 13 h
• Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m)
• Weight: 700 Kg
• Dimensions max. on base Lxlxh:  1600 x 790 x 1000 mm
