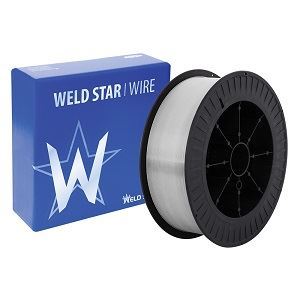

GeKa - ER 308LSi Stainless Wire (1.2mm) 15kg

Each
Availability: In stock
Order Code: 6011100123

Features and Applications

Austenitic stainless steel wire that has a low carbon content, which reduces the possibilities of intergranular carbide precipitation.

ER 308LSi is used to weld base metals of a similar chemical composition such as 304, 305 and 347 etc.

Increased silicon content promotes weld pool fluidity to give a smooth deposit appearance.

Ideal for applications requiring atmospheric corrosion resistance typically in urban and rural media’s.

Good mechanical strength at sub-zero temperatures down to -196°C.

Precision layer wound for superior wire feeding characteristics.

Typically used on a wide range of applications including pipe work, plate fabrication and vessel production etc.

Test Certificates can be found online @wilkinsonstar247.com



Typical Base Materials

W.Nr:   1.4306, 1.4301, 1.4541, 1.4550, 1.4311, 1.4546, 1.4312, 1.4300, 1.4312, 1.4371, 1.4541, 1.4543, 1.4550, 1.4452*
DIN: X2CrNi 19 11 (TP), X4CrNi 18 10 (TP), X6CrNiTi 18 10 (TP), X6CrNiNb 18 10 (TP), X2CrNiN 18 10 (TP), X5CrNiNb 18 10, G-X10CrNi 18 8 (TP)*
AISI: 202, 302, 304L, 304, 305, 321, 347, 304 LN, ASTM A320 Grade B8C/D, 302*

* Illustrative, not exhaustive list



Standards
EN ISO 14343-A - G 19 9 LSi
AWS A5.9 - ER 308LSi



Chemical Composition % (Typical)
C% Mn% Si% S% P%
0.023 1.86 0.89 0.001 0.025

Ni% Cr% Mo% Cu%
9.30 19.68 0.027 0.041



Mechanical Properties
Tensile Strength ≥510 MPa
Yield Strength ≥320 MPa

Elongation ≥25 %

Impact Strength ≥80 J


Mechanical properties are approximate and may vary based on the heat, shielding gas, welding parameters and other factors.



Welding Parameters - M12
Ømm Current (A) Voltage (V)
0.80 mm 40-120 15-20
1.00 mm 80-160 16-22
1.20 mm
100-210 17-23



Welding Parameters - M13
Ømm Current (A) Voltage (V)
0.80 mm 160-210 24-28
1.00 mm 180-280 25-30
1.20 mm
200-300 26-32



Shielding Gases

EN ISO 14175 - M12, M13



Welding Positions

EN ISO 6947 - PA, PB, PC, PD, PE, PF



Packaging Data
Diameter

Weight

Spool Pallet Qty

0.80 mm

1.00 mm

1.20 mm

15 Kg

15 Kg

15 Kg

D300

D300

D300

72

72

72

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained, this information is subject to change without notice and can be only considered as suitable for general guidance.
